TL1000 User Manual (Included in the Box)


⚠️ Safety Notice – Loose Wires

NEVER leave loose wires under the dashboard or near the pedals.
Improper installation can cause serious injury or even death.

  • TripLogik provides a tie to secure excess cable.

  • The user is responsible for proper installation and safety.

  • If unsure, consult a car dealer or qualified repair shop.

Important: Damage caused by incorrect installation is not covered under warranty.


Step 1 – Software Installation

Access the Manual and Software

  • If purchased online, you should have received an email with links to the manual, software, and installation instructions.

  • If not, everything is available in the Downloads section: https://www.triplogik.ca

Installation Guide

  1. Download Manager 2 software.

  2. Run the installer.

  3. Follow on-screen instructions.

  4. Create your user account in Manager 2.0.

  5. Add your TL1000 device and assign it to your user profile.

  6. Register your device in the warranty section of our website.

  7. Check the How-to Videos section for extra help.


⚠️ Windows 10 users: Please install the required Microsoft USB patch.



Usefull links to help you

How to install the Manager, step by step Manual


How to register the Manager


Add a new instrument and assign it to a user





Step 2 – Installing the OBDII Power Cable

Video Guide → How to install the instrument in your car

Connection

  • TripLogik uses a special OBDII cable (trapezoid connector, flat cable).

  • The OBDII connector is standard in all cars built after 1996.



Installation Steps

  1. Locate the OBDII connector

    • By regulation, it must be within one meter of the steering column.

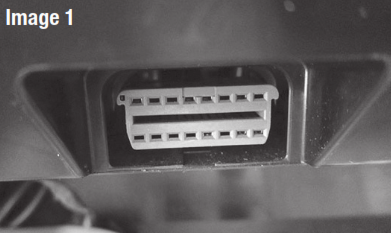

    • It is usually located under the dashboard on the driver’s side (see image 1).

  2. Plug in the cable

    • Insert the cable into the vehicle’s connector.

    • Due to its trapezoidal shape, the cable only fits one way.

    • On most vehicles, the OBDII connector is black, but it may also be another color.

Power and Advantage
The TripLogik uses a unique power supply that maintains constant communication with satellites.
This also frees up the standard cigarette lighter socket, allowing you to use it for other devices.



Routing the Cable

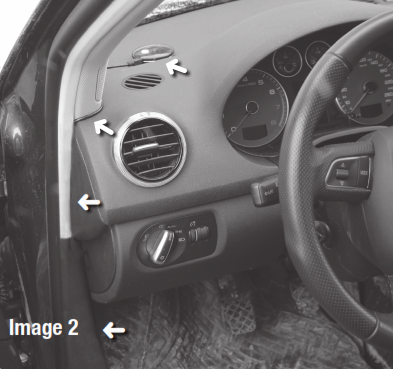

Route the cable along the side of the dashboard to the location where the recorder will be installed (see image 2).



Step 3 – Installing the Device

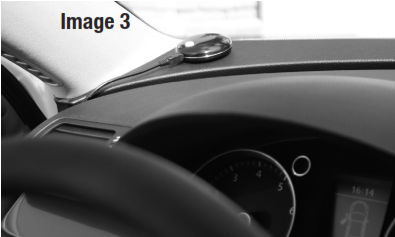

Recommended placement: near the left windshield pillar.

✅ Advantages:

  • Easy to reach without distraction

  • Better sky visibility → superior satellite reception

  • Safe, simple cable routing



Mounting Steps

  1. First, clean the area where the TL1000 will be placed.
  2. Remove the protective film from both sides of the black holding pad and tap it in your hands several times to reduce its stickiness. (It does not need to be very sticky; its purpose is simply to prevent the recorder from sliding on the dashboard.)
  3. Attach the holding pad under the TL1000 recorder. Position the device on the dashboard so the driver can easily reach the button while driving.
  4. Connect the recorder to the USB end of the OBDII power cable installed in Step 2.
  5. Route the cable along the side of the dashboard from the recorder to the OBDII connector. Secure the remaining cable away from the vehicle’s controls and pedals, and fasten it firmly using the provided cable tie.

Using TripLogik in the Vehicle

See the full guide: How to use TripLogik in the car


First Power-On

  • On first power-up, TL1000 initializes memory and acquires satellites.

  • ⚠️ Make sure the sky is clear (no garage, awning, metal structure).

During this phase:

  • Blue LED blinks

  • Device beeps during satellite communication

  • LED becomes solid when ready


Starting a Trip

When driving above 5 km/h, TL1000 emits a two-tone beep.

  • Press button = Business trip

  • Do not press = Personal trip

✅ Notes:

  • You may press anytime during the trip (even at the end).

  • Pressing multiple times causes no issue.

  • Trip type can be changed later in software.

  • The device records continuously – the button is only for classification.


Ending a Trip

  • Trips end automatically after 6 minutes of no movement.

  • To end/start early:

    1. Hold the button.

    2. Release after 1 long + 4 short tones.

  • If configured, a new trip starts immediately.

  • If moving, you’ll hear the two-tone trip start beep.


Business or Personal

  • At each trip start, TL1000 reminds you with a two-tone beep:

    • Press button = Business

    • Do not press = Personal

Tip: Trips can be reclassified later in software.


⚡ Why TL1000 Must Always Be Powered

  • GPS must stay synchronized with satellites.

  • Restarting GPS can take minutes, especially in poor weather.

  • TL1000 stays powered → no delay, no mileage loss.

⚠️ Do not rely on cigarette lighter adapters. They are unreliable and may cause data loss.

⚠️ Do not use car USB ports. They may interrupt recording or corrupt data.

✅ Always use the supplied OBDII power module.


Operation & Verification

  1. Park vehicle in open area.

  2. Device powers up and connects to satellites.

    • LED blinks → acquiring signal

    • After ~45s → long beep, LED stays solid → ready

  3. After ~60s of inactivity → LED off

  4. When vibration detected → LED turns on again


Switching the Button Function

Default:

  • Press = Business

  • No press = Personal

Reversed mode:

  • No press = Business

  • Press = Personal

⚠️ Must be configured before first use.
See online article → How to switch the button function.


Power Supply

The TL1000 includes a patented OBDII power module (rectangular cable with USB).

✅ Benefits:

  • Continuous power

  • GPS always synchronized

  • Recording ready immediately

⚠️ Not recommended:

  • Cigarette lighter → unreliable, may disconnect

  • Vehicle USB ports → may stop recording


Warning: Some radios may try to write to TL1000 memory, making it unusable. This is detectable and not covered under warranty.


Device Placement

Recommended: near driver’s side window pillar.

✅ Benefits:

  • Avoids distraction

  • Easy to reach

  • Safer cable routing


Installation Steps

  1. Clean dashboard area.

  2. Prepare adhesive pad (remove film, reduce stickiness).

  3. Attach pad under device, place within reach.

  4. Connect OBDII USB cable.

  5. Route and secure cable with tie.

  6. Wait until LED stops blinking (satellite lock) before driving.


Software Installation

  • Always download the latest TripLogik Manager online.

  1. Download from official site

  2. Run installer

  3. Follow on-screen steps

⚠️ Windows 10 users → Install Microsoft USB patch.


Best Practices for Mileage Reports

  • Generate reports every 30–60 days.

  • Do not wait a year, even though storage is 50,000–70,000 km.

✅ Advantages:

  • Verify all trips are recorded

  • Correct classifications

  • Define frequent locations (e.g., offices, clients) as default for auto-classification

⚠️ Responsibility:
Lack of discipline lowers quality.
You are solely responsible for report accuracy.


Passwords

[Read the Password Article]


Always Perform a Road Test

  • After installation, drive at least 2.5 km to collect sample data.

  • Sync with your computer to confirm the system works.

This ensures your installation is reliable before daily use.
