In what situation you should use this
- You have a corporate account with more than one instrument
- You have multiple users (employees) that will be using TripLogik from their own PC
In this manual we will explain:
- The definition of the terms used
- How to install the Manager for the admininstrator
- How to register the adminintrator
- How to setup the Manager on the adminintrators PC
- How to install the Manager on your employes PC ( local Users)
- How to register the Manager on your employes PC
Definitions of the terms used in the system
The Manager
The application running into your PC that allows you to retrieve data from your instrument, view routes, retrieve start and end addresses, and create mileage reports.
The instrument
The TL1000 GPS receiver that records and logs trips (GPS mileage Logger). it is a measuring instrument to be handled accordingly like any other electronic device.

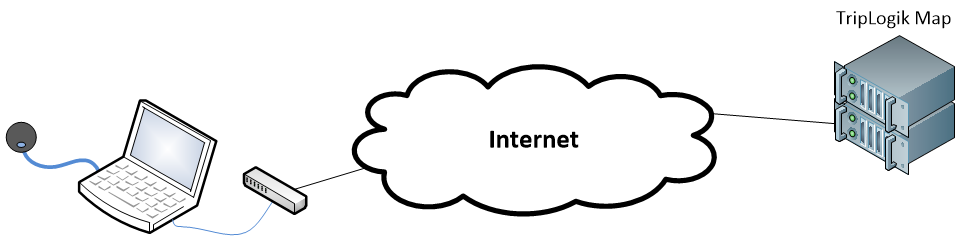

TripLogik Map
The internet service that works with the Manager to retrieve the coordinates and the geolocated addresses of each trip.
Basic concept of users
In the Manager application, there are two types of users, The Primary administrator , and local users.
- The Manager application uses a "Primary administrator" to connect to the TripLogik Map server.
This user is the "owner" or administrator of the system. - "Local users" are the people using instruments. When you connect an instrument to the Manager, it will know who is using the instrument, and will transfer the trips to this user’s database. This ensures data will never mix from one user to another.
This is why instruments are "assigned" to a local user.
Primary User
When the Manager is installed, the first user is defined by default as the primary user.
If the application is used by a single user, the user is the "owner" of the TripLogik Map account and there is no need to create a local user.
This user password is also the login for the Triplogik Service.
Local user
Once the Manager software is installed and "connected" to the TripLogik Map server, It is possible to add several other users in the same application. These users are called "Local Users" because they are not Triplogik Map account owners. The local term is used because they use the TripLogik Map server through the Main account (owners)
Basic concept
- The Manager application uses the Primary user name to connect to the TripLogik Map server.
- Every other user name, called "local users", are the actual users of a TripLogik instrument.
- Instruments are "assigned" to a local user. This enables the Manager to properly store the trip to who’s ever been using the instrument.
Conclusion of the concept
- The Manager application uses the Primary user name to connect to the TripLogik Map server.
- Every other user name, called "local users", are the actual users of a TripLogik instrument.
- Instruments are "assigned" to a local user. This enables the Manager to properly store the trip to who’s ever been using the instrument.
STEP 1
How to install the Manager for the admininstrator
Steps to set up your system
There are 3 steps to properly set up your system
- Install Manager
- Register the administrator
- Register the instrument into the Manager
- Install the Manager on your employes PC
NOTE 1
We recommend using a generic email redirected to the department that will administer the system.
By experience, most of the time it is HR or accounting taking care of the system as it is mostly related to expenses, revenues and income taxes.
Ex accouting@XYZcompany.com
The reason to use an email that will not change is to prevent any future issues when an employee changes position.
NOTE 2
When selecting the above Password , please select a dedicated password. This is the password to install the Manager on your user’s PC as well, and you will need to share this with your users.
Learn how to install and configure the manager in the links below.
How to install Manager Step by Step
STEP 2
ADMINISTRATOR SECTION
( for employees, see SETP4 Install and configure the Manager application on your employees PC )
How to register the TripLogik Manager

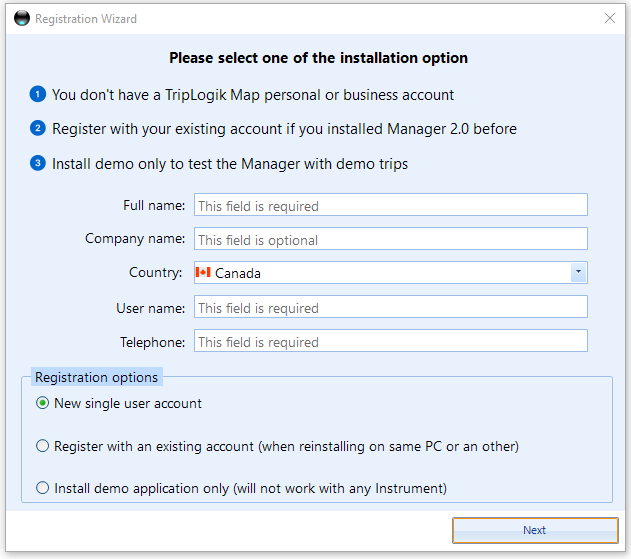

When you first start the Manager, you will need to select between 3 options.
The 3 options are:
1) Single User account also known as the Primary Administrator user
2) Register with an existing account ( if you are installing again or if installing as a corporate user)
3) Register as a demo, ( you cannot use your instrument, this is for demo purpose only )
Register as the administrator
As the administrator use option 1 New single user accounts
Full name is your name as the administrator of the account used to ID you.
Company name To ID your account as corporate in our system.
User name is a short ID , we suggest you reuse the same as full name, but it can be something else.
Telephone for tech support when you contact us.
Click NEXT

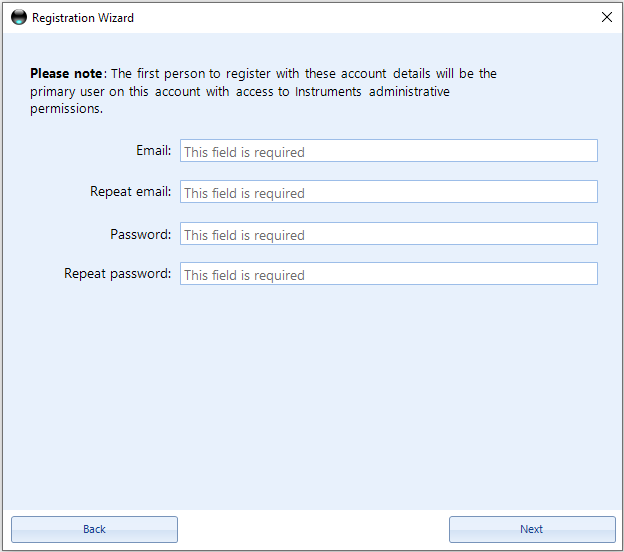

EMAIL REGISTRATION
Enter an email address that will be linked to your account.
Note about Email
In a company, we suggest you use an email linked to "accounting" or "HR" that is not used by a person that might leave the company. In many cases you might have one like accounting@company_XYZ.com or HR@company_XYZ.com
just make sure you will have access to it for the confirmation email later in the instructions.
Tips about Password for corporate use
Password should be a password not already used anywhere else, especially since you have to share the account with others in the company. This password will be reused on your employees PC under the corporate account.
Click NEXT

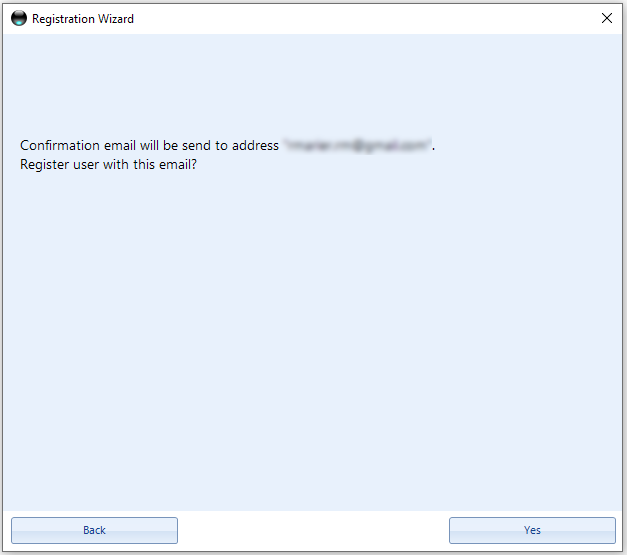

YOU ARE ABOUT TO CONFIRM YOUR ID
This message is to confirm the server will send you a confirmation to the email you entered.
Click YES to continue
BACK to change the email
Click YES
If you are creating a new account
A confirmation email will be sent to the email you just inserted in the registration.
You must open this email and click on the confirmation link BEFORE you continue.
Be careful if you don't seem to receive the email
Check your spam box.
If you use Gmail, log in to the web interface of Gmail to check the spam box, because anything unidentified in spam is not sent to external email software.

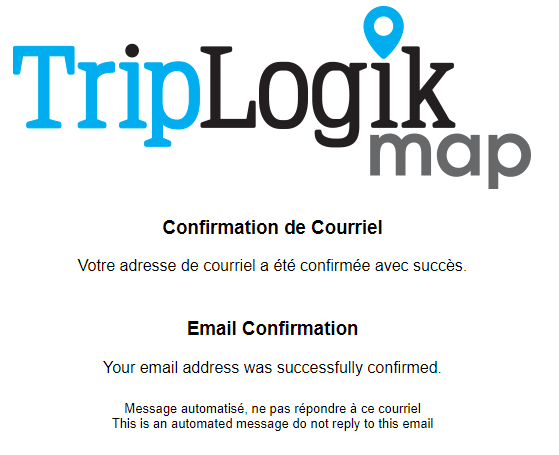

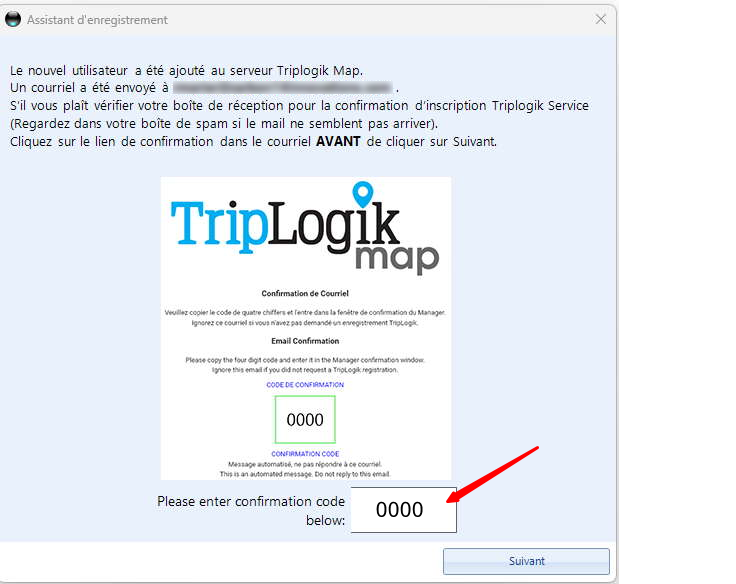

The email will look like the image below
Once you click on the link, your email will be confirmed.
Attention
if the email you received does not have a confirmation code.
Use code 0000 to continue
Congratualtion, you have installed and configures the Manager as the administrator on your PC

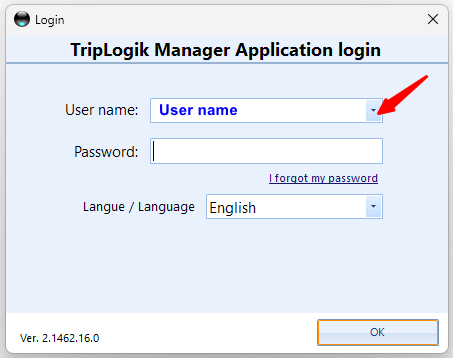

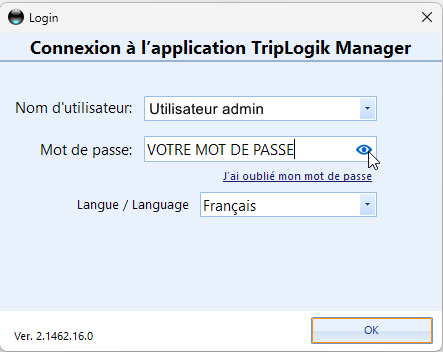

First Login
You are now ready to log into the Manager application.
- Select your user name from the drop list ( if not already selected)
- Enter your password
Click on OK

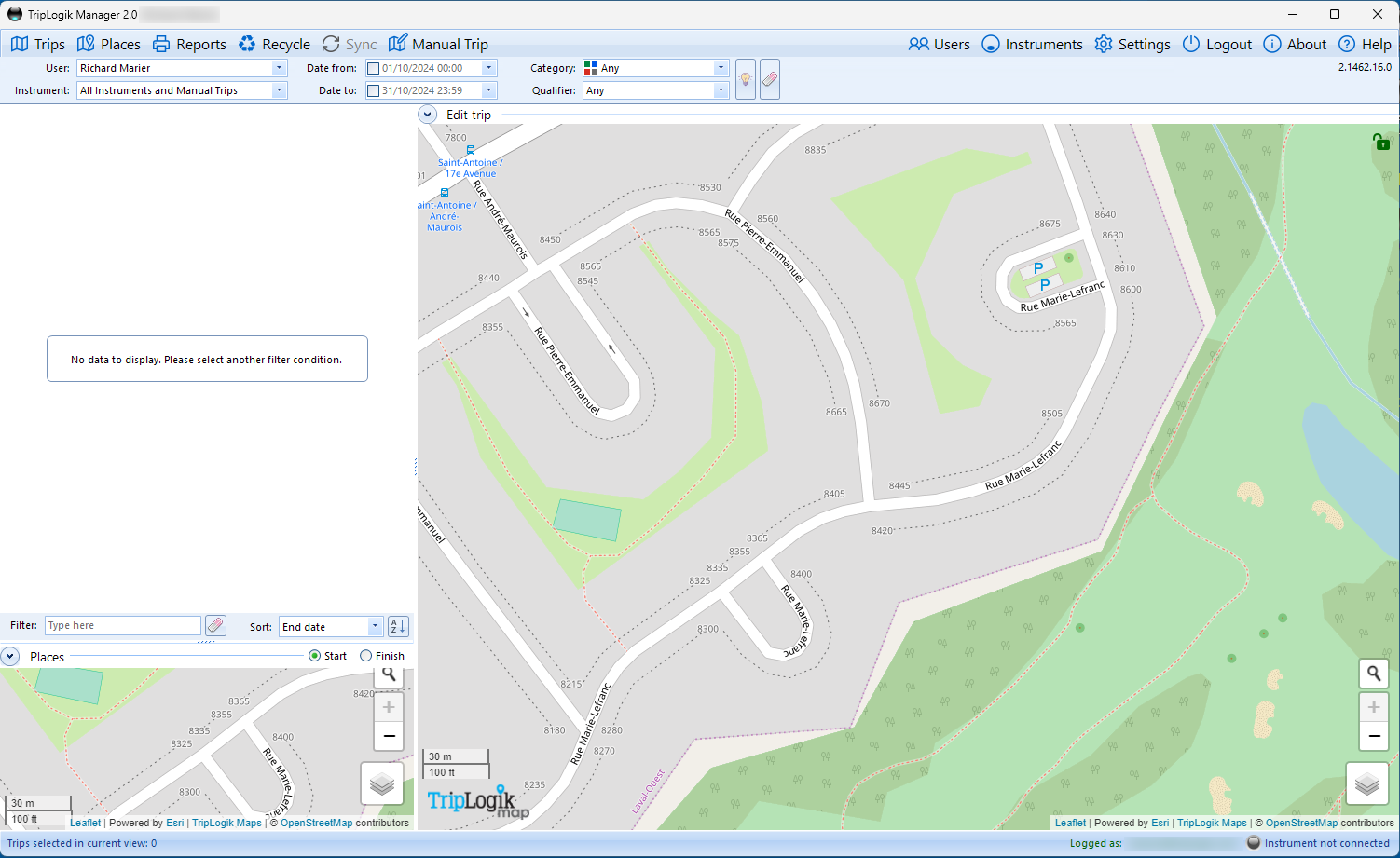

The Main screen will look like the image below
STEP 3
Add instruments to your account and assign them to users
We suggest the following steps
- Create users in the Manager
- Add instruments and assign them to users
- If you are left with instruments not assigned to users yet or do not have any users, simply assign all instruments to the administrator. You can reassign them later.
Please click on the link below for the instructions on how to add users, instruments and assign them to users.
Add a new instrument and assign it to a user
STEP 4 EMPLOYEES SECTION
Install and configure the Manager application on your employees PC
This step can be done by your IT or by the users.
Requirement ( for IT )
- Please ensure the users have sufficient permission to install applications on their PC
- In some cases, they might need to be temporarily given admin permission ( depending on your corporate windows Policy)
Steps required
- Install the Manager application
- Register the Manager using the administrator email and password provided to them by the admin
- Create their own local user
- Add their instrument and assign it to their own user
- Configure the instrument setting for their need
- Install the instrument in the vehicle
- Make a test drive of 2km or more
- Sync the instrument to make sure the system is fully functional.
Step 4.1
Installation of the Manager of the employee’s PC
Follow the instructions in the link below
How to install Manager Step by Step
Step 4.2
Register the Manager
IMPORTANT
DO NOT USE OPTION 1 AS IT WILL CREATE A NEW ACCOUNT.
YOUR CORPORATION ALREADY HAS A CORPORATE ACCOUNT

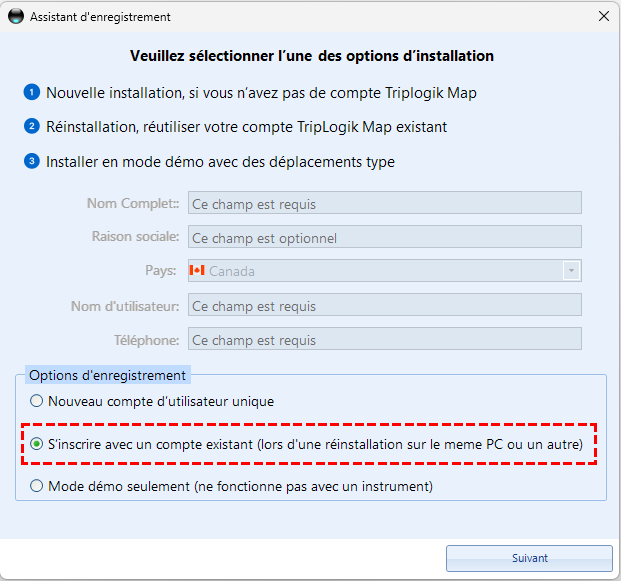

When registering as a local user, select option 2 , register with an existing account.

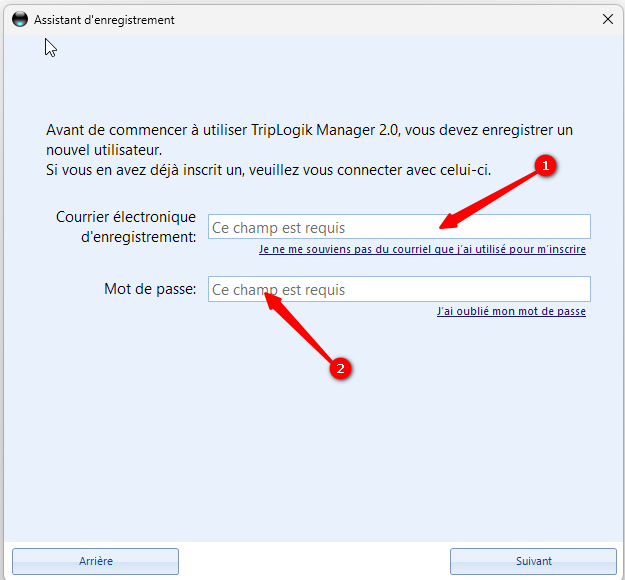

At the email information
Enter the email and password sent to you by your administrator.
If you did not receive this information, please contact your administration.
You can now login to the Manager
Step 4.3

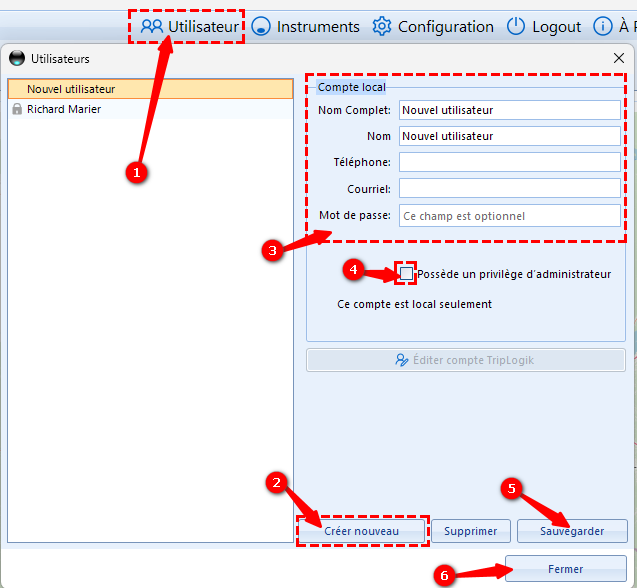

Create your local user
- Click on the User Menu
- Click on create new
- Fill the user information
- select local admin privilege
- Save and close
important note when creating your local user
Names
Ensure complete name and Name are both filled, preferably with a similar name ( copy, paste )
as this will identify you in the login screen but also on your reports.
Password
If you do not enter one, you will be able to open the Manager without having to use a password.
Local Admin
Select to be able to customize your reports
Once the new user is created
click on the logout button, then log back in the Manager, but using the user you just created.
Steps 4.4 and 4.5
Adding your instrument to the Manager and assign it to you your local user.

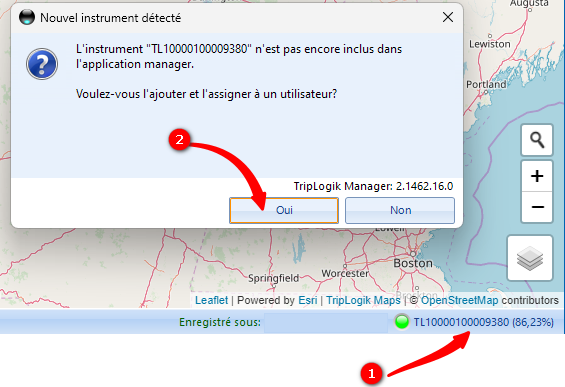

Using the blue USB cable provided
Plug the instrument to your PC and wait until it is detected.
- The instrument serial number will show at the bottom right of the screen
- Click YES to add the instrument to assign it.
- Select the user this instrument will be assign to from the drop list
- Select the action of the button ( see note below for more details)
- Add the instrument to the user
Note about button action
When driving the vehicle, the button is used to classify the trip into a category as you are doing the trip.
Default action is not pressed = Personal and pressed = business
This can be reversed , but it must be done before you start using the instrument in the vehicle.
To change it , change the pressed to none, then change the not pressed to business. Reselect the pressed to personal.
DO NOT leave any of them in none.
Step 4.6
Install the instrument in the vehicle
Please consult the online manual on how to install the instrument
Video how to install in the vehicle
Step 4.7
Sample test drive
When the instrument is ready to be used , please go for a short drive for about 2km (1 mile)
Ensure the light is not flashing anymore before you start driving.
Step 4.8
Start your first data Sync
How to sync your instrument to the Manager test
If your system is properly configured, you should see the first trips in the trips list including start and end locations.
Final note for the end user of the instrument
We strongly suggest you consult the startup guide to learn more about how to use the instrument in the vehicle,
and how to use the Manager software to its full potential.
You can search the online manual using keywords here -> TripLogik Online Manual
Read the short manual here
User guide.. Light, buttons, beep, the minimum you should know to operate efficiently.
Software installation, configuration, first usage, data BACKUP
If you follow the steps below one by one below, they are organized to guide you through all the steps.
Each one of them is documented step-by-step with instructions to assist you.
- Download Manager 2.0 software
Download the software here - How to install Manager 2.0
Step-by-step guide - How to configure and register the Manager application
Video guide - How to add your instrument in Manager 2.0
Add a new instrument and assign it to a user - How to pay for your TripLogik yearly membership
How do I pay for my Triplogik Map membership? - How to synchronize my data (after you made a trip longer than 2.5-3km ( 2 miles))
Sync your instrument to the Manager test - Build and print a report
Build a first report - How to back up my data to an external drive or cloud
Data backup
Other useful information
About passwords ( explanations of the different types and how to recover them)
Explanation of the different passwords
How to save and/or move my data to a new computer.
How to reset the Manager software to default or with a new main user
Backup, Recovery and Upgrade utility
